Tupolev Tu-16 Badger
"Xian JHU-6"


Trumpeter model in 1/72 scale made by Meindert de Vreeze

The Tupolev type Tu-16 NATO Codename "Badger" has been issued in this scale by Trumpeter from China.

These new Chinese kit manufacturer  succeeds in improving it's kits all the time. This kit is very good indeed. It is priced in Holland at about  EURO 40,- which is good value for such a large and nice kit.

You will get not only the very large plastic parts required but also included in this box are etched metall detail parts and a photo negative to represent the main instrument panel! Nice touches!


[41 Kb]
Real pictures Avia Russian Aviation page:

The kit has been issued in several versions; this kit being the Chinese Badger H-6 Kit No. 01614 refuelling tanker version, including the refuelling pods. This one is subject of this page; other releases are Soviet Badger, including USSR decals and markings for an Iraqi aircraft.

I choose to make a Soviet plane.

The Trumpeter kit is impressive; fit is generally good and the panellines are engraved and accurate.

The following recommendations when assembling this kit are:
- use the intake covers; otherwise you will need to add the complete engine intake tunnels...
- start with assembling the rear parts; leave cockpit for later on. Start with step 4
- I left the bombbay for what it is; Doors will be assembled in close position
- I engraved the flying surface areas with the special Olfa P-cutter; the flaps need to be emphasized especially, both on the upper wings and lower wings. I also cut in the gaps on the flying surfaces.
- On wing part D4: remove the strange remaining plastic edge on the tip (mould error)
- I added some detail at the rear cabin at the tail; the blisters show the details.



   box art Chinese JHU-6


Accuracy
Specifications of H-6 (Courtesy from    ):
Dimensions
Wing Span 112 ft 2 in (34.189 m);
Length 114 ft 2 in (34.80 m);
Height 33 ft 11.75 in (10.355 m);
Tailplane span 38 ft 6.5 in (11.75 m);
Wheel track 32 ft 0 in (9.755 m);
Wheel base 35 ft 9.75 in (10.913 m)

The kit seems to be quite accuracy both in dimensions and looking at the general shape. This is not so surprising as it seems that Trumpeter from China got access to a real airplane to take measurements.


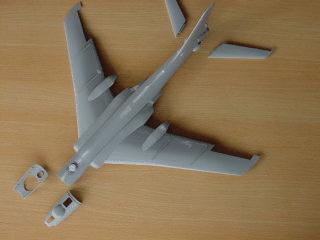

Next step will be to complete the cockpit area including all fine supplied detailed parts on seats and instrument panels.

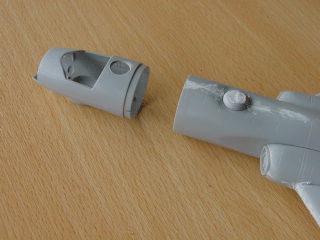

The Badger front section has been added and sanded flush. Long but small gaps between wings, fuselage etc have been "filled' with white glue. The model is now ready to receive its first overall coat of paint.


note masking


references:
- Russian aviation Tupolev
- Avia  page..
The model was given a first light overcoat of aluminium with a Badger airspray.


However, it turned up that the removal of small scratches was not done well. Although polishing the model, they still were visible. Well, that means: polishing it again. A coat of Johnson clear was applied and I am going to try to polish that hoping that it will help to get a smooth finish....




I polished to applied clear coat and added a new coat of aluminium paint. It worked! I got a nice scratch free finish. New, I masked of some areas and added a different colour of Metal, this time Testor Aluminium metalizer paint. After 15 minutes drying, I buffed up this paint with a piece of cloth. The Badger now has some different shades, adding realism to this model. I also added with a large brush a final Johnson clear coat once dry to seal the paints.

Next step will be further completion with the undercarriage, hatches etc and obviously the decals.



 note used Revell masking foil ( similar to Badger foil)
The kit was further finished. many smaller metal etched parts are supplied, but strangely enough were not mentioned in the instructions. Extra's that can be applied with these parts are the windscreen wipers, smaller antennas.

The model was finished as a Soviet Tu-16K, Badger G ; soviet "red stars" came from the spare box with single number on the tail. Additional colouring was applied with red intake covers and painted aluminium metal decals in places at several panels.

.


a very nice model in the Soviet plane collection..


A kit was separately purchased for the typical AS-1  missile with NATO name "Kennel". The kit from MP models is fine with few parts and includes a simple trolly.
